Measurement of Anomalous Hall effect (AHE) & Inverse Spin Hall effect (ISHE)
Measurement of PMA strength & anisotropy field & magnetic field induced by a spin accumulation
Measurement of Coercive field
(how and what is measured): An external magnetic field is applied along easy axis (along magnetization) and the the Hall angle is measured.
(how and what is measured): An external magnetic field is applied perpendicularly to the easy axis (perpendicularly to magnetization) and the angle of the magnetization tilting is measured using a Hall measurement..
(how and what is measured): An external magnetic field is applied opposite to the magnetization direction and the time, after magnetization reverses its direction to be along the external magnetic field, is measured.
(physics beyond measurements) External magnetic field Hz is applied along the magnetic easy axis and, therefore, along the magnetization M (shown as green ball) of nanomagnet. Since Hz is applied along M, the magnetization direction is not changing and, therefore, the corresponded Anomalous Hall effect (AHE) is not influenced by the external magnetic field Hz. In contrast, the spins of spin- unpolarized conduction electrons are aligned along Hz . As a result, the number of spin- polarized electrons increases. It cause of a larger contribution of the Inverse Spin Hall effect (ISHE) and therefore an increase of the Hall angle vs. Hz.
(physics beyond measurements) ( mechanism 1) When an external magnetic field H|| is applied perpendicularly to the magnetization and along magnetic hard axis, the magnetization tilts towards the magnetic field.. The stronger perpendicular Magnetic Anisotropy (PMA) is, the stronger field is needed to tilt the magnetization. The magnetic field, at which the magnetization turns completely in-plane (along magnetic hard axis), is called the anisotropy field Hani The Hani is a measure of the strength of the perpendicular magnetic anisotropy (PMA). (mechanism 2) In the case when there is an additional magnetic field H(SO), which is induced by the spin accumulated electrons, at a fixed external magnetic field the tilting angle to the left and to the right is different. When scanning external magnetic field Hext from left to right, the data becomes non- symmetrical with respect to Hext=0, because of H(SO). Estimation of symmetry offset gives H(SO).
(physics beyond measurements) There is an energy barrier between two stable states for magnetization of a nanomagnet. The magnetization switches between the states only by assistance of a thermal fluctuation of an energy higher the barrier height. The probability of the thermal fluctuation is exponentially proportional to its energy. The magnetic field reduces the energy barrier. As a result, the switching time exponentially proportional to the magnetic field. The measurement of the switching time vs. external magnetic field gives all parameters of the thermally- activated magnetization switching (e.g. coercive field).
(what is measured) (parameter 1) Hall angle of Anomalous Hall effect (AHE); (parameter 2) Hall angle of Inverse spin Hall effect (ISHE) (parameter 3) Spin polarization; (parameter 4) Intrinsic magnetic field inside the nanomagnet.
(what is measured) (parameter 1) anisotropy field; (parameter 2) magnitude and angle of magnetic field, which is induced by spin- accumulated electrons; (parameter 3) coefficient of spin- orbit interaction kSO for bulk and interfaces of nanomagnet; (parameter 4) oscillations of anisotropy field or the same the dependence of coefficient of spin- orbit interaction kSO on an external magnetic field ;
method 1: measurement of Inverse- Spin Hall effect and spin polarization
Experiment: Measurement of Hall angle αHE in FeB nanomagnet under external magnetic field Hz. The FeB nanomagnet is fabricated on top of Ta nanowire. The Hall voltage is measured by a pair of the Hall probe. The blue balls shows the conduction electrons in the FeB, the arrows show their spin direction. In absence of magnetic field Hz. only a few spins are aligned perpendicularly to plane. These conduction electrons are called spin-polarized. Spins of other (spin-unpolarized electrons) are equally distributed in all directions. When magnetic field Hz is applied, the spins of the spin- unpolarized electrons are aligned along Hz. The larger Hz is, the more spins are aligned. As a result, the number of spin-polarized electrons becomes larger. The Hall voltage (its ISHE contribution) is linearly proportional to the number of spin-polarized electrons or the spin polarization. Therefore, the Hall voltage (and αHE) increases when magnetic field increases.

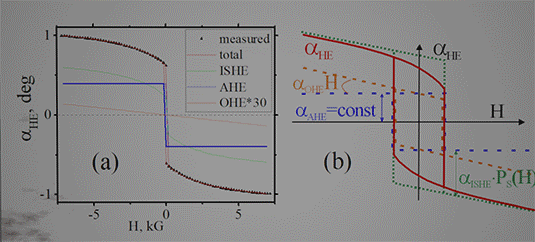

Measurement: The spin polarization is evaluated from a non-linear increase of αHE in external magnetic field. The measured hysteresis loop of can be divided into 3 contributions: AHE (~ constant), OHE (~H) and ISHE (~non-linear vs H). Since the dependence of the spin polarization on the magnetic field is known, the polarization s evaluated from fitting of non-linear part.
Note. I have developed this measurement method in 2019-2020
click on image to enlarge it
(main idea of the measurement): AHE, ISHE and ordinary Hall effect (OHE) are separated and measured individually by measuring the dependence of the Hall angle αHall on externally- applied perpendicular magnetic field Hz. AHE is a constant vs Hz. OHE is linearly proportional to Hz and ISHE non- linearly depends on Hz. As a result, AHE and OHE do not contribute to second derivative d2αHall /dHz2 and the 2d derivative is only proportional to ISHE. AHE does not contribute to 1st derivative dαHall /dHz. Therefore, comparison of αHall and dαHall /dHz gives AHE.
(measurement method 1): Measurement of Hall angle vs magnetic field applied along magnetization
External magnetic field Hz is applied along magnetization M (shown as green ball) of nanomagnet. Since Hz is applied along M, the magnetization and corresponded Anomalous Hall effect (AHE) are not influenced by the magnetic field Hz. In contrast, the spins of conduction electrons are aligned along Hz . As a result, the number of spin- polarized electrons increases. It cause of a larger contribution of the Inverse Spin Hall effect (ISHE) and therefore an increase of the Hall angle vs. Hz.
(what is measured) The increase of the Hall angle vs. increasing magnetic field applied along magnetization
(which parameters are evaluated) AHE, ISHE, spin polarization of conduction electrons.
Click on image to enlarge it
What are the main challenge of the measurement method 1? Why it was not used before?
A. Main problem of this measurement method is the static magnetic domains. When magnetic field applied, magnetic wall of magnetic domain is moving and the total magnetization of the sample changes substantially. The change of αHall due to the magnetization change during the domain movement is substantially larger than the αHall change due to magnetic- field dependence of OHE and ISHE. As a result, it is hard to separate AHE,ISHE and OHE.
Main challenge of this measurement method is to avoid the static magnetic domains. Simple solution is use a sample of a small size ( a nanomagnet), which does not have any static domains.
The fabrication of a nanomagnet is rather recent technology, which is the reason why this measurement method has not been used before.
Why there is no static domains in a small sample (a nanomagnet)?
A. The static domains are formed when the energy of magnetostatic interaction between domains of opposite magnetization exceeds the formation energy of a domain wall (the exchange energy). The magnetostatic energy is proportional to the domain area. When the nanomagnet area becomes smaller, the magnetostatic energy is not sufficient for a static domain to form and there is no static domain.
(measurement method 1): transformation of hysteresis loop for AHE and ISHE evaluation

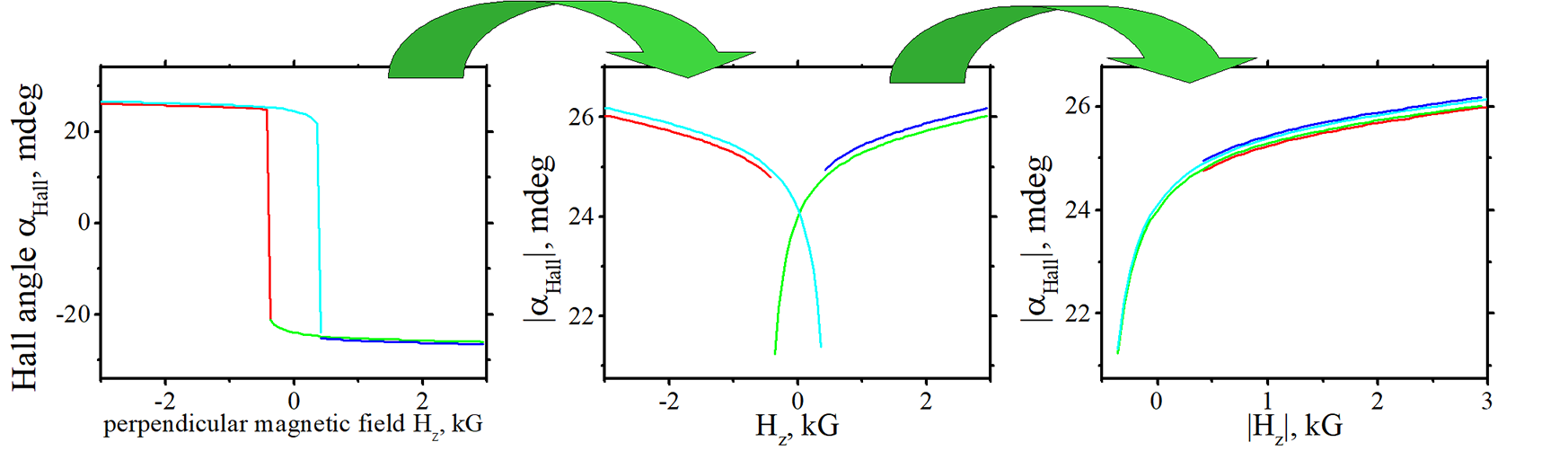

measured hysteresis loop of αHall vs Hz
absolute value of αHall
vs absolute value of Hz
Color lines show different parts of the loop. Scan of Hz from a negative to positive value: ( before M switching): light- blue line; (after M switching): blue line. Scan of Hz from a positive to negative value: ( before M switching): green line; (after M switching): red line.
In absence of a magnetic domain, all 4 lines follows the same path in 3d graph
Analysis and fitting are done for a curve, which is an average of these 4 lines.
The coincidence of the 4 lines is an indication on the absence of static magnetic domains
Fig.11. Click on image to enlarge it
In the case of FeCoB nanomagnet, the single- domain magnetization reversal occurs in nanomagnet with diameter smaller than 50 nm. Does it mean that the method 1 can be used only for such small nanomagnet?
A. No. The method 1 can for a moderate size nanomagnets as well. E.g. size 3um x 3 um mostly is OK for a FeCoB nanomagnet.
There are nucleation domains in the nanomagnet of a moderate size. The nucleation domain is unstable and its domain wall is always expand. As sooner as a nucleation domain is formed, it expands over the whole nanomagnet. The nucleation domain has no influence on the measurement method 1.
Experiment. Measurement of anisotropy field
MMM 2020 conference
click on image to play video
My presentation on this topic no MMM 2020 conference
Experiment. Measurement of anisotropy field
External magnetic field is applied along current
External magnetic field is perpendicularly to current
Measurement of the anisotropy field of a magnetic nanowire. The green balls shows the magnetization direction of FeB nanomagnet, the blue arrow shows direction of external magnetic field. The FeB nanomagnet is fabricated on top of Ta nanowire. The magnetization direction is measured by a pair of Hall probe. The measured Hall voltage is largest when the magnetization is perpendicular to the top surface of nanomagnet
Without an external magnetic, the magnetization M is perpendicular to the film due to PMA. When external in-plane magnetic field H|| is applied, the magnetization turns towards the H||. The magnetic field, at which the magnetization turns fully in-plane is called the anisotropy field. The stronger PMA is and the stronger the PMA resists to the magnetization turning, the lager and the anisotropy filed is. Therefore, the anisotropy field is measure of the strength of the PMA.
Click on image to enlarge it
Measurement of anisotropy field Hanis
Measured in-plane magnetization as a function of applied in-plane magnetic field. The arrow shows the direction and magnitude of the applied in-plane magnetic field. The ball shows the magnetization direction. Without magnetic field the magnetization is perpendicularly-to-plane. Under magnetic field, the magnetization turns toward magnetic field. The field, at which the magnetization turns completely in-plane, is called the anisotropy field. The dots of the right graph shows experimental data. Measurement date: May 2018.
Click on image to enlarge it
Video
measurement of Anisotropy field.
Conference presentation. MMM 2020
