Abstract:

High- precision, high- reproducibility, high- repeatability measurement of magnetic and magneto- transport properties of ferromagnetic nanomagnets using the Hall effect

High-precision measurement of effect of spin-orbit torque (SOT effect): Dependence of magnetic and magneto- transport properties on electrical current

High-precision measurement of effect of voltage-controlled magnetic anisotropy (VCMA effect): Dependence of magnetic and magneto- transport properties on a gate voltage

---

---

---

Measurements

(measurement 1) Measurement of Hall angle vs external perpendicular magnetic field

(1.1) Measurements of Hall angle, Anomalous Hall effect (AHE), Inverse Spin Hall effect (Sample dependence)

(1.2) Spin-orbit torque: Measurement of dependence of Hall angle, Anomalous Hall effect (AHE), Inverse Spin Hall effect on current magnitude and polarity.

(1.3) VCMA: Measurement of dependence of Hall angle, Anomalous Hall effect (AHE), Inverse Spin Hall effect on gate voltage

(measurement 2) Measurement of anisotropy field vs external perpendicular magnetic field

(2.1) Measurement of PMA & Anisotropy field

(2.2) Spin-orbit torque: ""Field- like torque" ""Damp- like torque". Measurement of dependence of PMA on the electrical current .

(2.3) VCMA: ""Field- like torque" ""Damp- like torque". Measurement of dependence of PMA on gate voltage.

(measurement 3) Measurement of magnetization switching under external perpendicular magnetic field

(3.1) Measurement of coercive field H_C, retention time, size of nucleation domain, parameter delta Δ

(3.2) Spin-orbit torque: Current dependence of magnetization switching parameters.

(3.3) VCMA: dependence of magnetization switching parameters on gate voltage.

---



Details of Measurement Methods are here



---

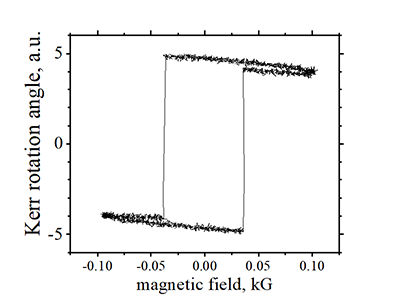

Volt 58A (Ret14): Ta(5 nm)/ (FeCoB 1 nm, x=0.3)/ MgO(7 nm)/ Ta(1 nm)/ Ru(5 nm)



fabrication: Ret14 (stepper only, no EB)

MgO 220C/360C

Raw data Volt58.zip (.dat files and origin 9 files)

(7zip (free) download is here)

Conductivity: 0.048-0.051 S/m2

Anisotropy field H_anis =6.5 kGauss-8.5 kGauss

Coercive field = 200 Oe-330 Oe;

Hall angle measured=360- 470 mdeg

Intrinsic Hall angle of FeB= 2160- 2820 mdeg;

Gap region etched: FeCoB is partially etched, stopped in middle of FeCoB



Since the nanowire is double- layer, which consists of Ta and FeCoB layer, the Hall angle in FeCoB can be calculated from measured Hall angle (See here) as

where

t_FeB, t_Ta, σ_FeB,σ_Ta are thicknesses and conductivities of FeCoB and Ta metals.



k_double=6





size: all samples:

nanowire width: 3 μm; nanomagnet length: 3 μm

















(measurement 1) Measurement of Hall angle vs external perpendicular magnetic field Hz







Hall angle, Anomalous Hall effect (AHE), Inverse Spin Hall effect (Sample dependence)

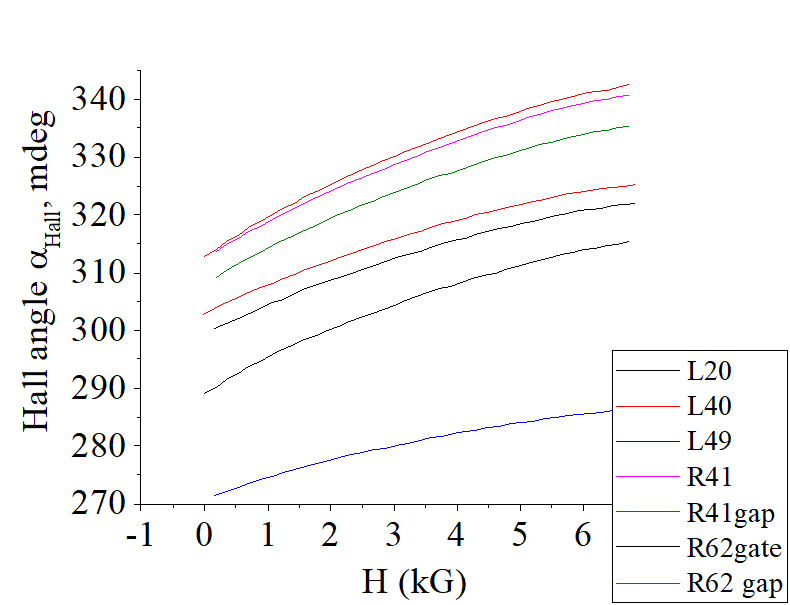

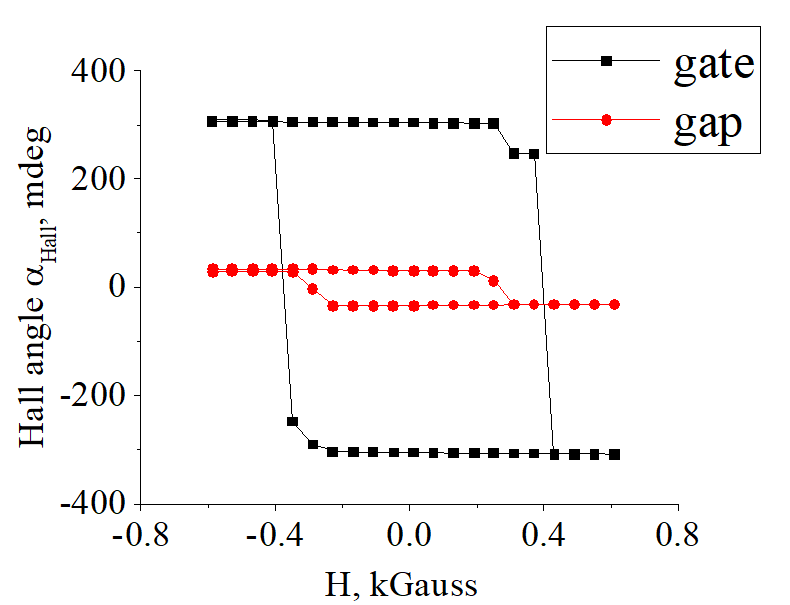

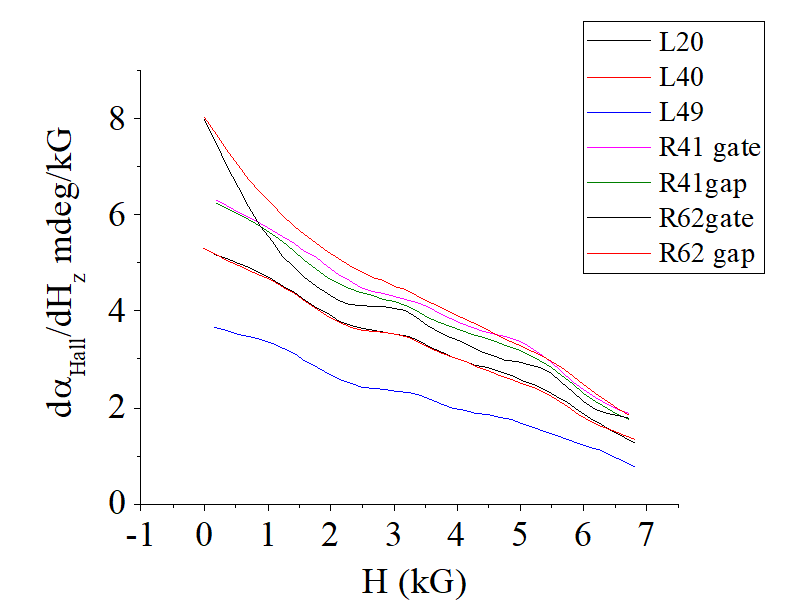

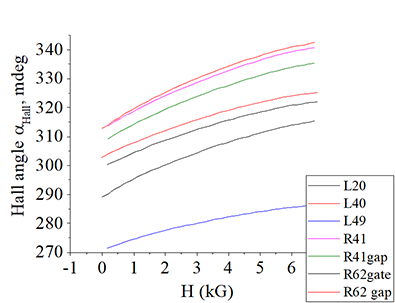

Hall angle αHall 1st derivation ∂αHall/∂Hz 2nd derivation ∂2αHall/∂Hz2 αHall and therefore strength of AHE is substantially different for each nanomagnet ∂αHall/∂Hz is different for ~10 % for each sample with correspondent difference of ∂2αHall/∂Hz2, which means that the strength of ISHE is different for each nanomagnet

details of this measurement method is here

Sample Volt 58A: Ta(5 nm)/ (FeCo 1 nm, x=0.3)/ MgO(7 nm)/ Ta(1 nm)/ Ru(5 nm)

click on image to enlarge it



Fitting of Hall angle

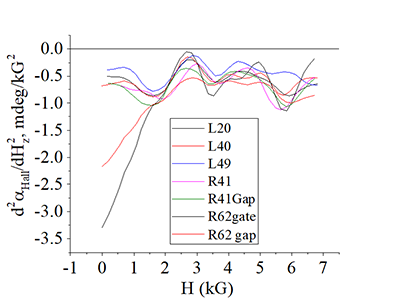

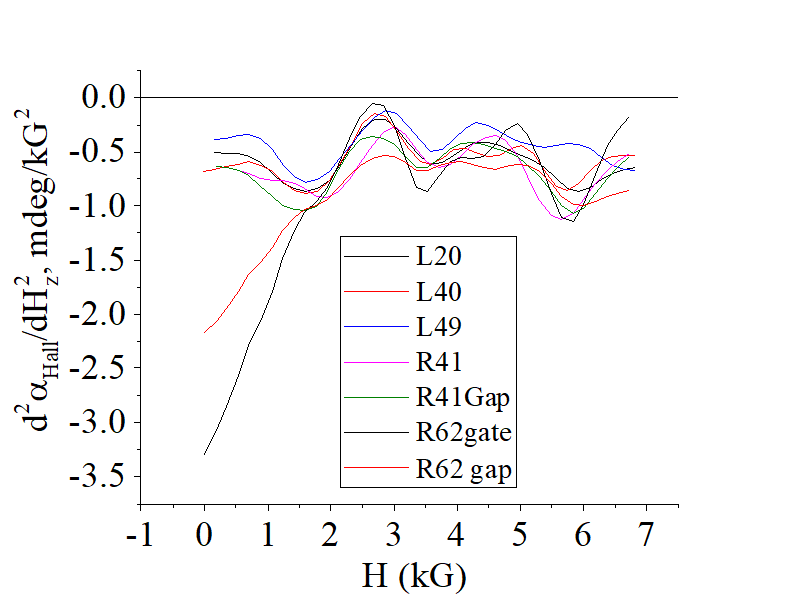

The Hall angle α_Hall , its 1st derivation ∂α_Hall/∂H_z and its 2d derivation ∂²α_Hall/∂H_z² is simultaneously fitted by equation (See here)

where α_OHE is Hall angle of Ordinary Hall effect, α_AHE is Hall angle of Anomalous Hall effect and where α_ISHE is Hall angle of Inverse Spin Hall effect

There is an ambiguity for α_ISHE and α_AHE, which depends on unknown spin polarization sp

where sp is the spin polarization of conduction electrons, α_AHE,0.5 is α_AHE at sp=0.5, α_ISHE,0.5 is α_ISHE at sp=0.5

result of fitting:

sample:( L20) α_ISHE,0.5= 171 mdeg; α_AHE,0.5= 1454 mdeg; α_OHE=0.2 mdeg/kG; H_p=6.96 kG;

sample:( L40) α_ISHE,0.5= 296 mdeg; α_AHE,0.5= 1522 mdeg; α_OHE=0.2 mdeg/kG; H_p=9.1 kG;

sample:( L49) α_ISHE,0.5= 285 mdeg; α_AHE,0.5= 1509 mdeg; α_OHE=0.2 mdeg/kG; H_p=8.23 kG;

sample:( R41 gate) α_ISHE,0.5= 377 mdeg; α_AHE,0.5= 1497 mdeg; α_OHE=0.2 mdeg/kG; H_p=8.8 kG;

sample:( R41 gap) α_ISHE,0.5= 367 mdeg; α_AHE,0.5= 1482 mdeg; α_OHE=0.2 mdeg/kG; H_p=9.1 kG;

sample:( R62 gate) α_ISHE,0.5= 403 mdeg; α_AHE,0.5= 1480 mdeg; α_OHE=0.2 mdeg/kG; H_p=9.44 kG;

sample:( R62 gap) α_ISHE,0.5= 331 mdeg; α_AHE,0.5= 1397 mdeg; α_OHE=0.2 mdeg/kG; H_p=8.2 kG;



---



AHE & ISHE vs current & current polarity. SOT effect

Measurement 1. Dependence of Anomalous Hall effect (AHE) & Inverse Spin Hall effect (ISHE) on current and current polarity. Effect of Spin-Orbit Torque (SOT)



Spin-orbit torque. Hall angle, Anomalous Hall effect (AHE), Inverse Spin Hall effect vs current

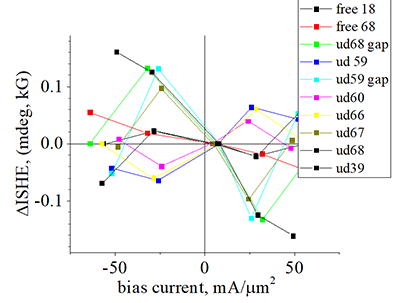

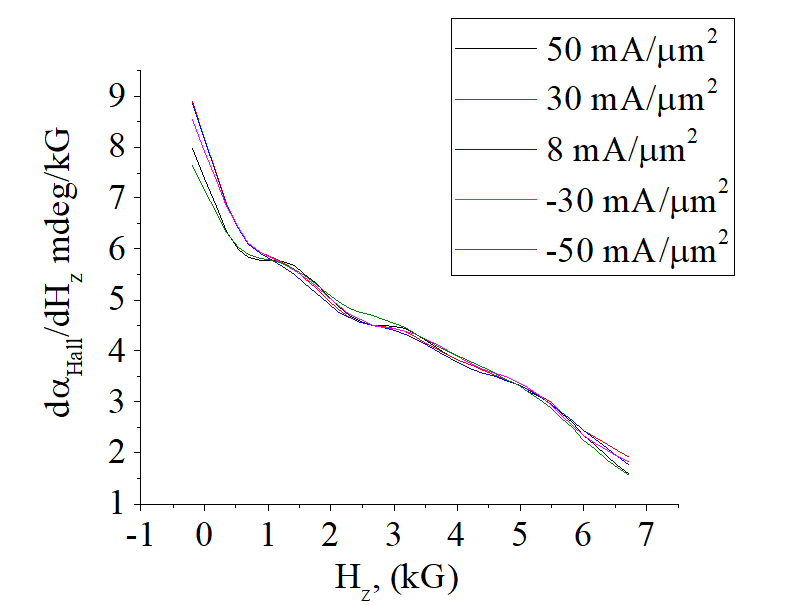

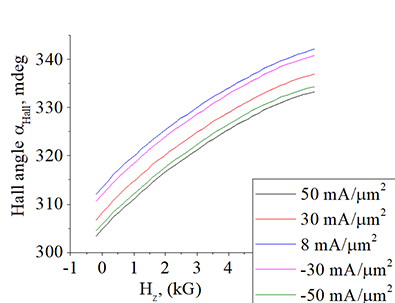

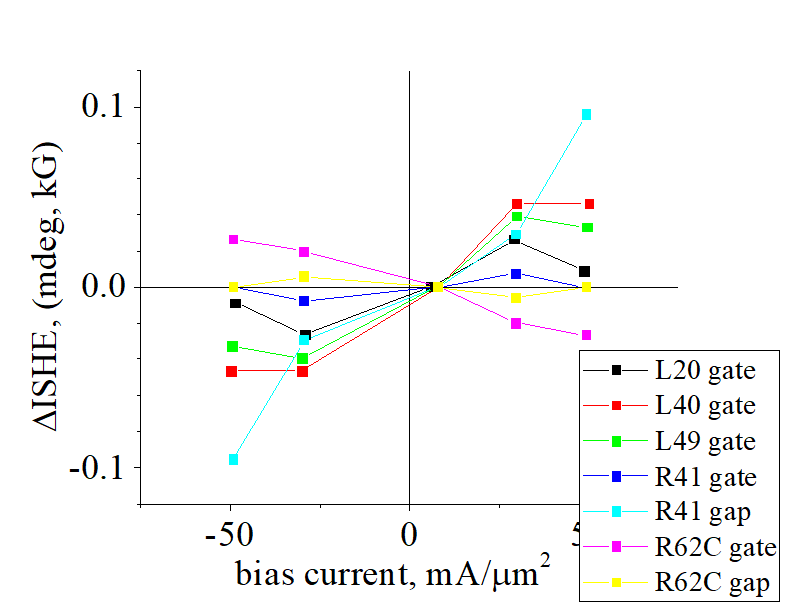

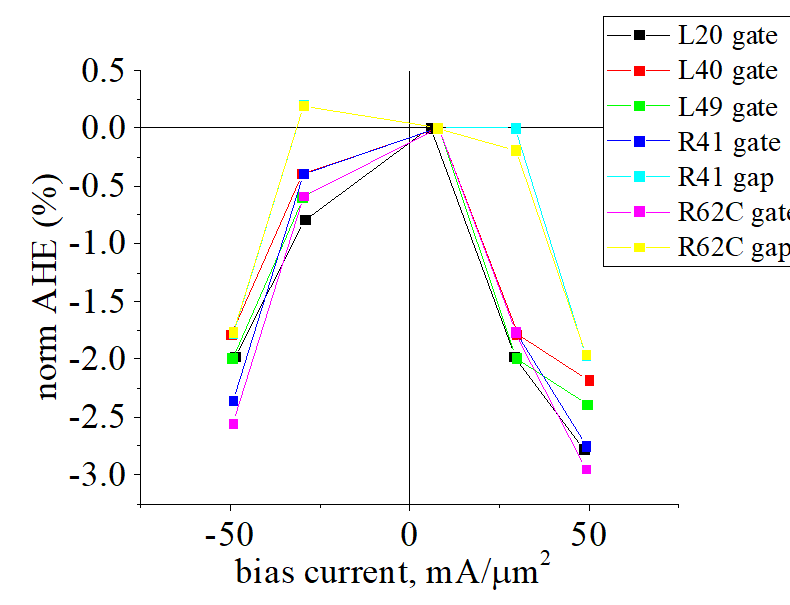

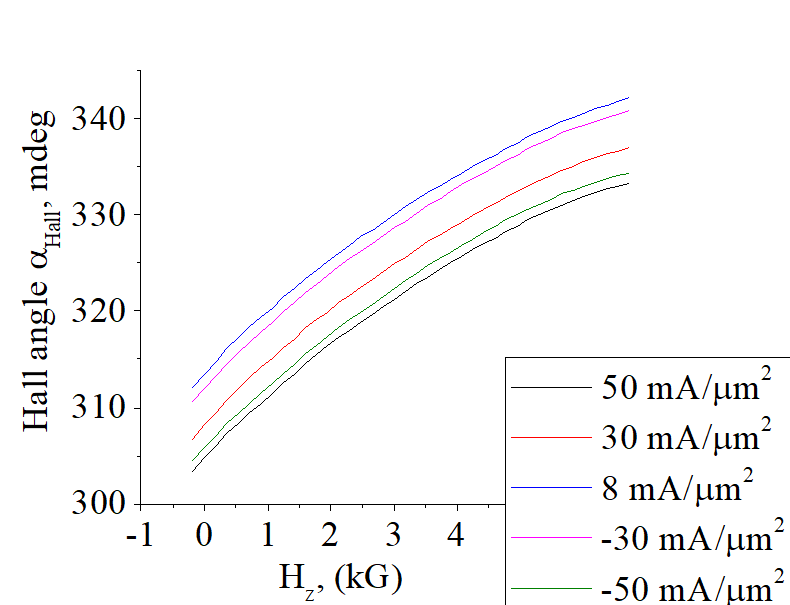

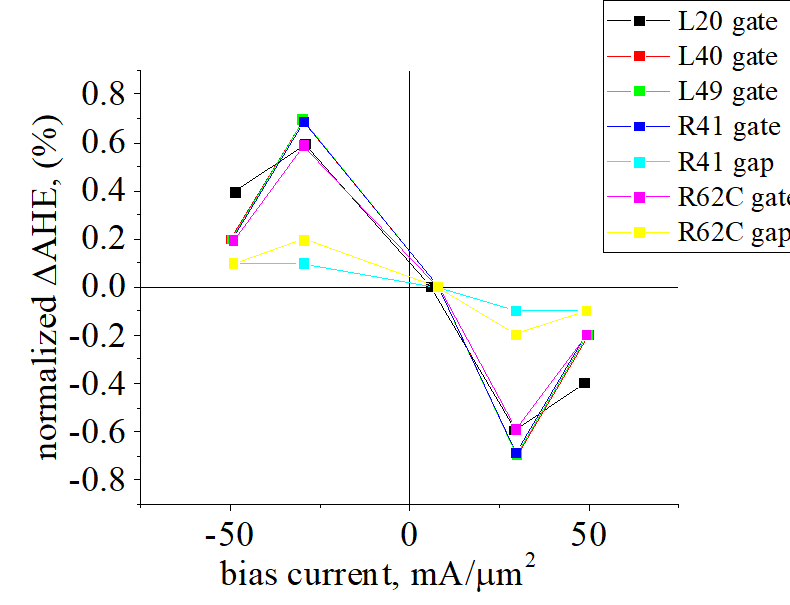

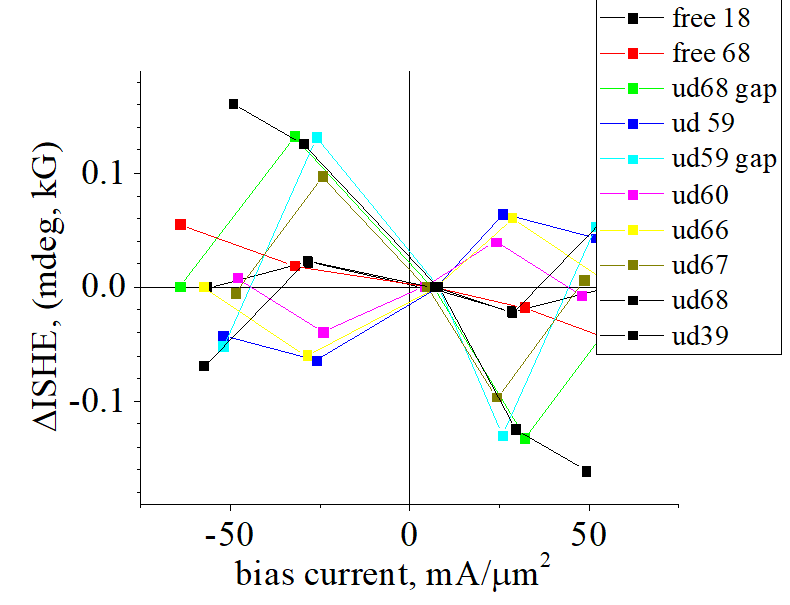

fig.4a.Current- dependence of AHE (Hall angle αHall) fig.4b. Current- dependence of ISHE (∂αHall/∂Hz i)     fig.4c. Dependence of AHE on polarity of current j fig.4d. Dependence of ISHE on polarity of current j ΔAHE= (αHall(j)-αHall(-j))/2 ΔISHE= (ISHE(j)-ISHE(-j))/2 fig.4e. Hall angle αHall at different current j fig.4f.∂αHall/∂Hz at different different current j sample: R41 gate. Dependence of AHE (αHall) is substantial and obvious sample R41 gate. Dependence of ISHE is weak.

details of this measurement method is here

Sample Volt 58A: Ta(5 nm)/ (FeCo 1 nm, x=0.3)/ MgO(7 nm)/ Ta(1 nm)/ Ru(5 nm)

click on image to enlarge it

Features

(temperature)

dependence on current magnitude

(AHE vs I² ): moderate 2.5% decrease at current of 50 mA/ μm²; (fig.4a)

(ISHE vs I² ):moderate, 0.2 mdeg/kG (fig.4b)

(Spin- orbit torque)

dependence on current polarity

(AHE(I)-AHE(-I)):large 0.6-1 %/(50 mA/ μm²); slope: negative ; saturation: at 30 mA/ μm²; (fig.4c)

(ISHE(I)-ISHE(-I)): small (~0.08 mdeg/kG) (fig.4d)





---

AHE & ISHE vs gate voltage. VCMA effect

Measurement 1. Dependence of Anomalous Hall effect (AHE) & Inverse Spin Hall effect (ISHE) on gate voltage. Effect of Voltage-Controlled Magnetic Anisotropy (VCMA)



VCMA. Hall angle, Anomalous Hall effect (AHE), Inverse Spin Hall effect vs gate voltage

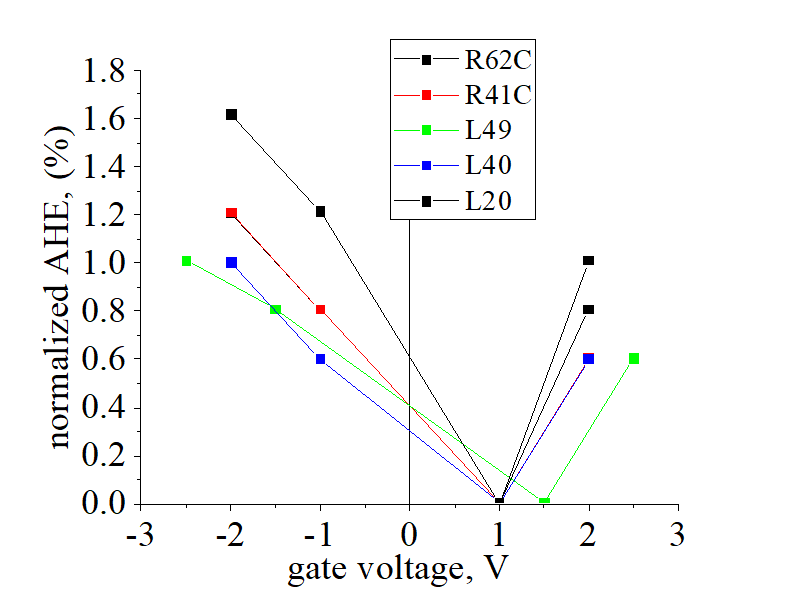

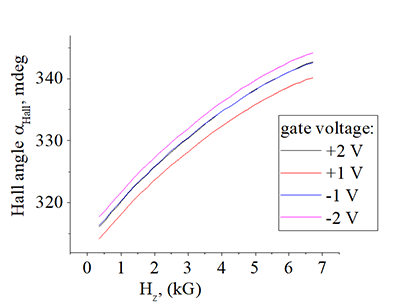

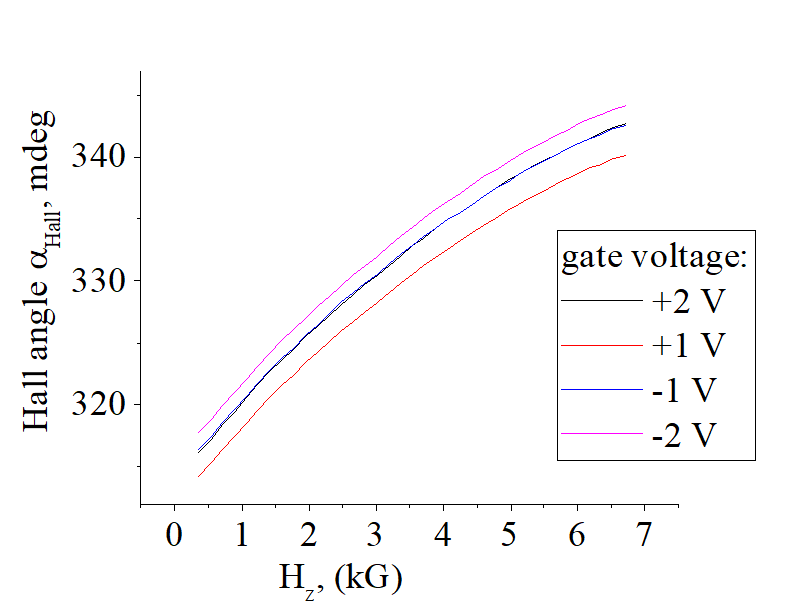

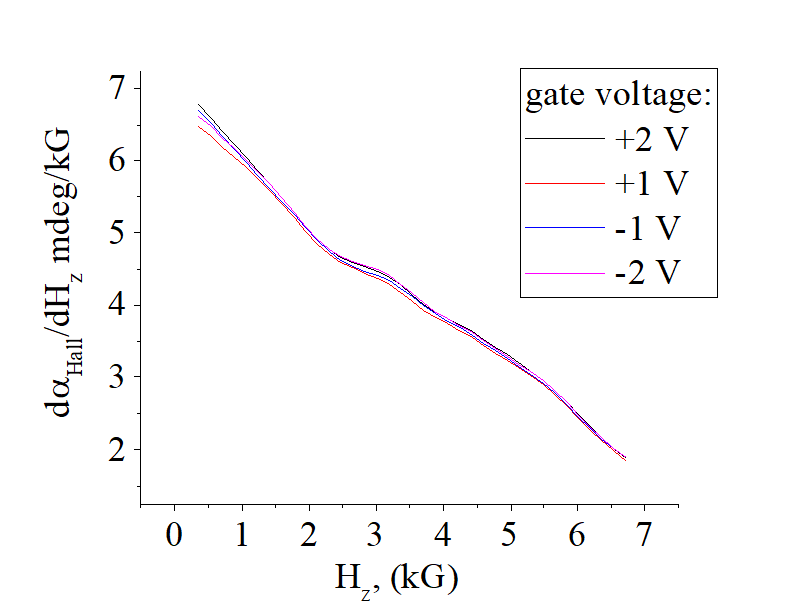

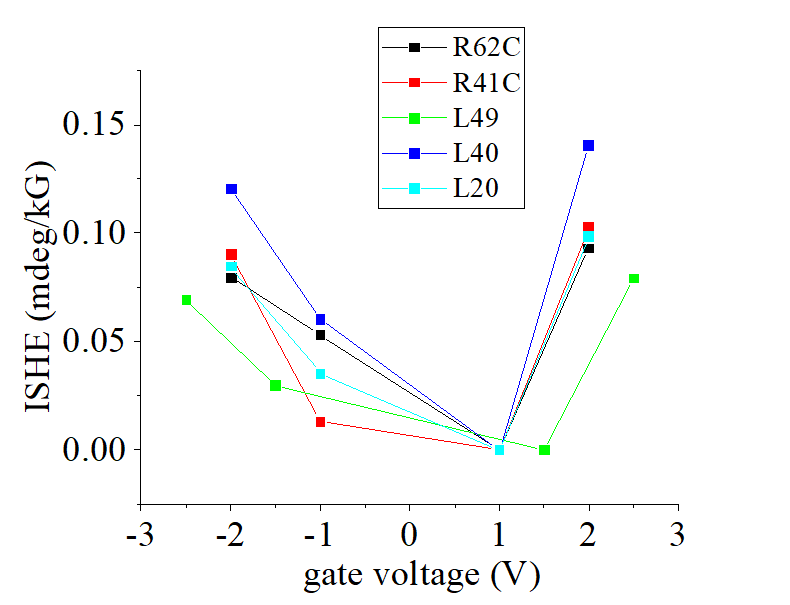

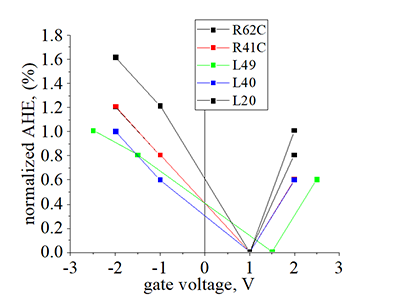

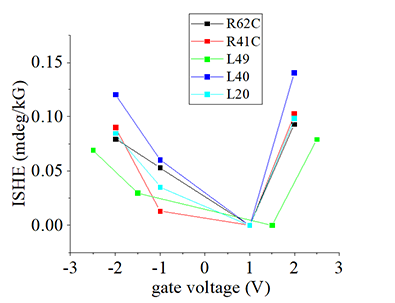

fig.5a. dependence of AHE (Hall angle αHall) on gate voltage fig.5b. dependence of ISHE (∂αHall/∂Hz) on gate voltage normalized change of AHE vs gate voltage. normalized AHE=(AHE(V)-AHE(V=1))/AHE(V).   fig.5c. Hall angle αHall at different different gate voltages fig.5d.∂αHall/∂Hz at different different gate voltages Sample R62. Dependence on Vgate is clear Sample R62. Dependence on Vgate is weak

details of this measurement method is here

Sample Volt 58A: Ta(5 nm)/ (FeCo 1 nm, x=0.3)/ MgO(7 nm)/ Ta(1 nm)/ Ru(5 nm)

click on image to enlarge it

Features



dependence on gate voltage

(AHE vs V_gate ): strong 1.6 % ; slope: negative; saturation: V_gate=+1 V

(ISHE vs V_gate ): moderate 0.15 mdeg/kG; slope: negative; saturation: V_gate=+1 V











---

(measurement 2) Measurement of anisotropy field vs external perpendicular magnetic field Hz

details about measurement method is here and here



Measurement of PMA. Anisotropy field

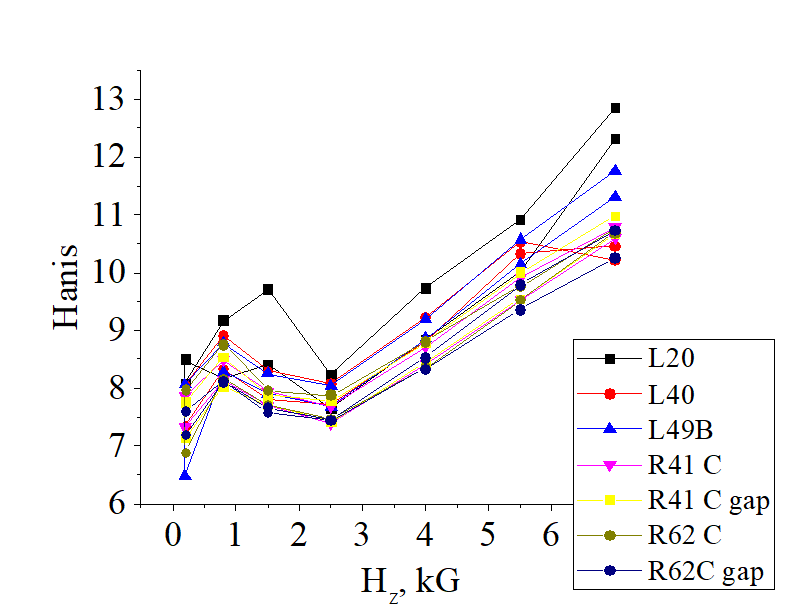

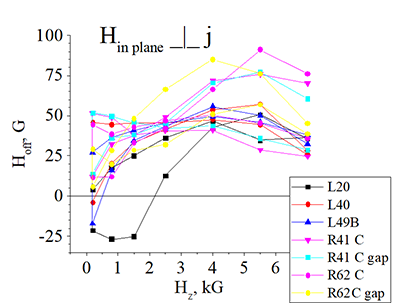

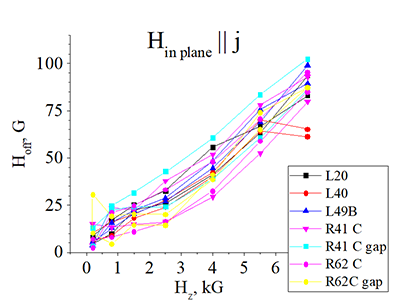

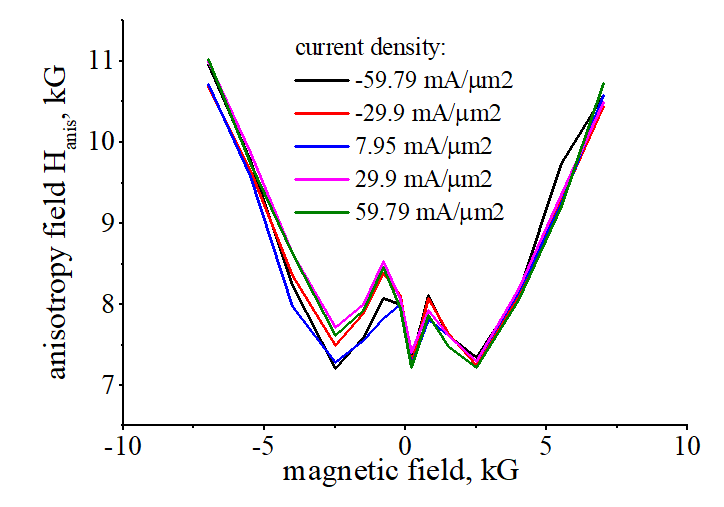

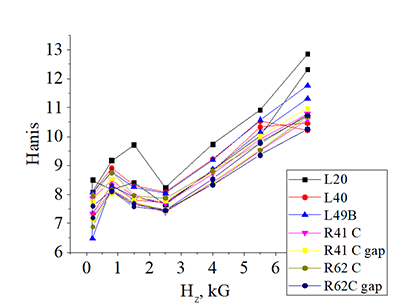

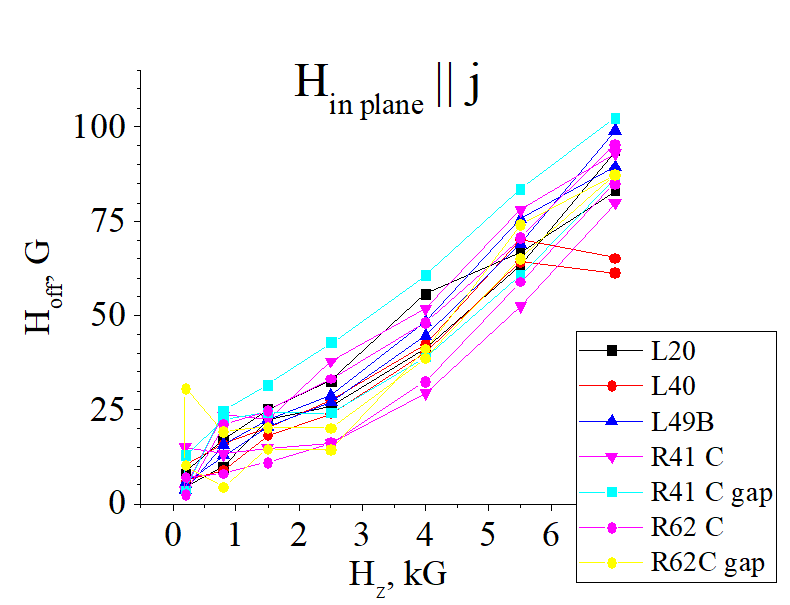

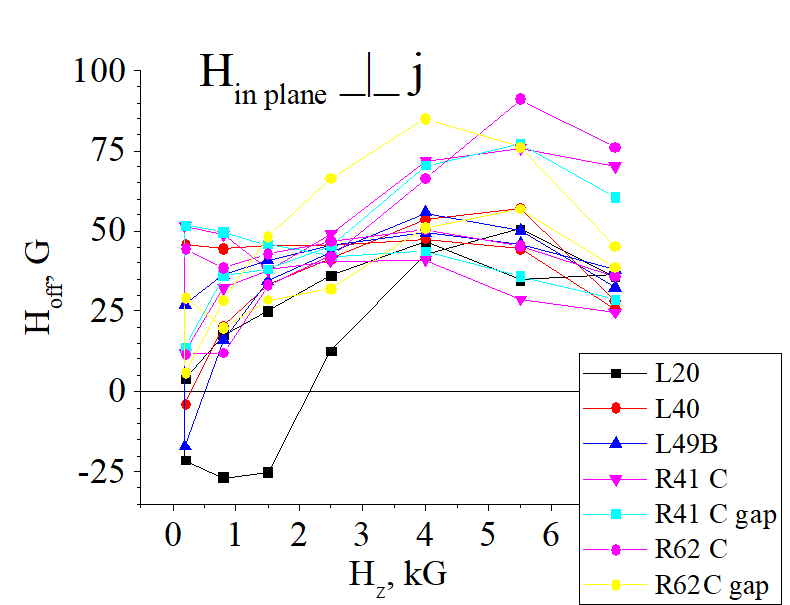

Anisotropy field Hanis Offset magnetic field Hoff . Scan is along wire. Offset magnetic field Hoff . Scan is perpendicularly to wire. Anisotropy field Hanis vs external perpendicular magnetic field Hz. Hanis is about 5 kG and variation from sample to sample is about 0.5 kG. Up to =2.5 kG, there is a peak and diversion from a strait line. There is a weak difference between positive and negative scans of Hz. Offset magnetic field Hoff measured when in-plane magnetic field is scanned along metallic wire. There is a substantial difference between samples and a substantial difference between positive and negative scans of Hz. At Hz =7 kG, Hoff = between 50-100 G for different samples. The dependence is linear with some periodical modulation. Offset magnetic field Hoff measured when in-plane magnetic field is scanned perpendicularly to metallic wire. There is a substantial difference between samples and a substantial difference between positive and negative scans of Hz. At Hz =7 kG, Hoff = between -10-40G for different samples. The dependence is slightly linear (nearly a constant) with a substantial periodical modulation.

details of this measurement method is here

Sample Volt58: Ta(3 nm)/ FeB(1.1 nm)/ MgO(7 nm)/ W(1 nm) /Ru(5 nm)

click on image to enlarge it



Spin-orbit torque vs PMA

Spin-orbit torque. Measurement of dependence of PMA on the electrical current j.

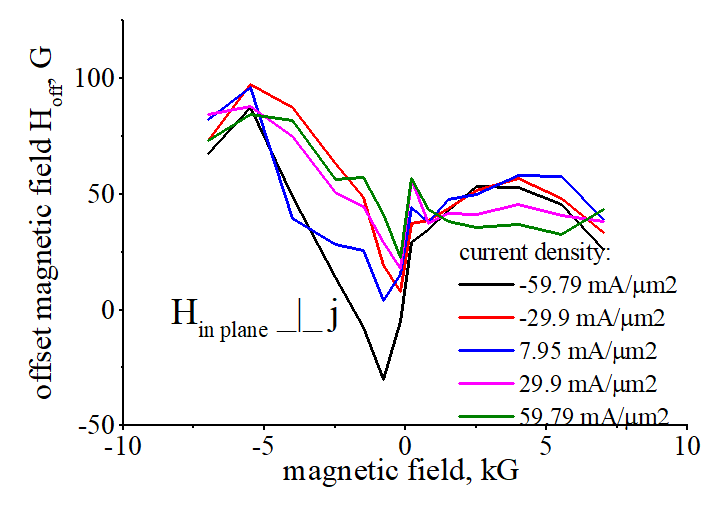

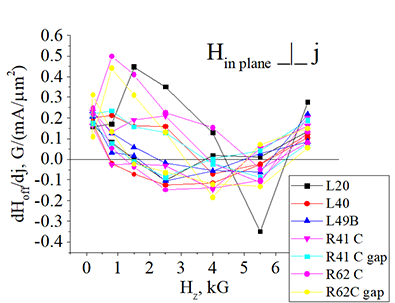

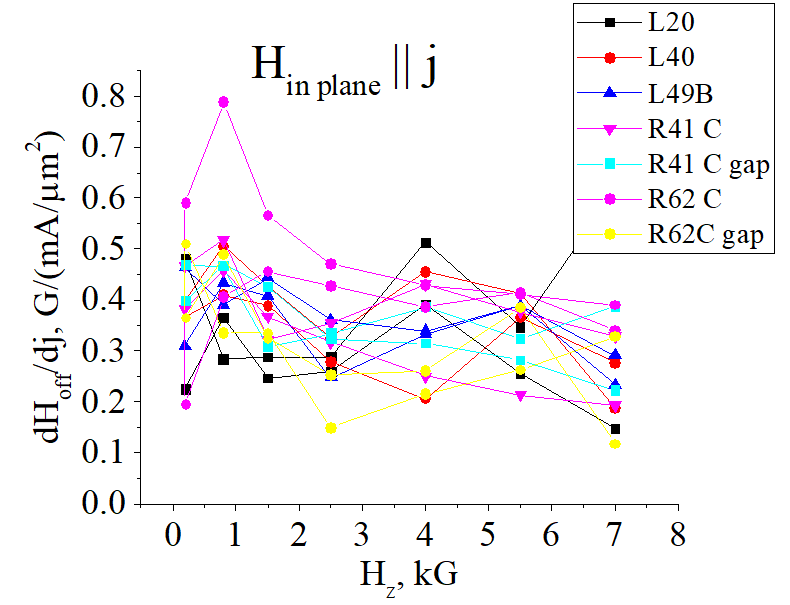

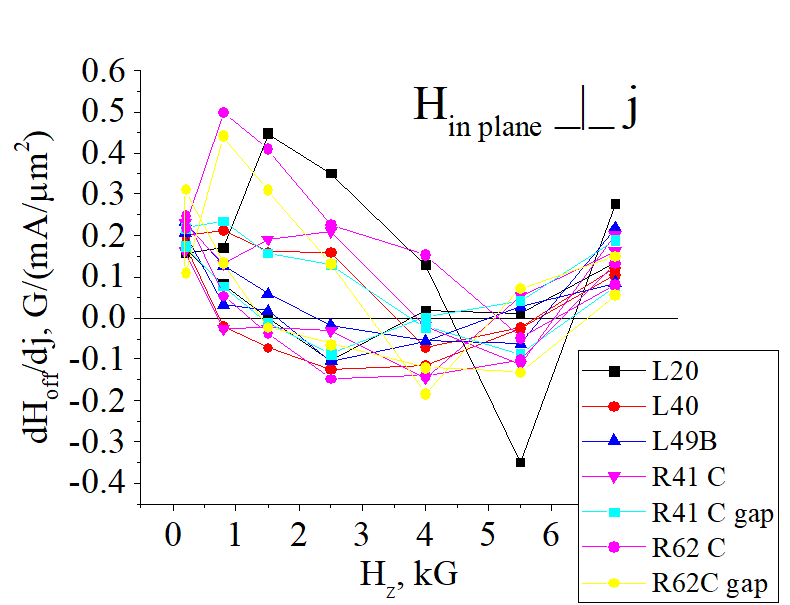

"Field- like torque". Current- dependence of offset field ∂Hoff/∂j. Scan is along wire. "Damp- like torque". Current- dependence of offset field ∂Hoff/∂j. Scan is perpendicularly to wire. ∂Hoff/∂j~ 0.1 Gauss/(mA/ μm2).E.g. at j=100 mA/ μm2, change of offset field ΔHoff=10 Gauss. There are clear oscillations. There is a substantial difference between positive and negative scans of Hz. ∂Hoff/∂j~ 0.18 Gauss/(mA/ μm2).E.g. at j=100 mA/ μm2, change of offset field ΔHoff=18 Gauss. There are clear oscillations. There is a substantial difference between positive and negative scans of Hz. Current- dependence of anisotropy field∂Hanis/∂j. Scan is along wire. Current- dependence of anisotropy field∂Hanis/∂j. Scan is perpendicularly to wire. no data ∂Hanis/∂j~ 0.8 Gauss/(mA/ μm2).E.g. at j=100 mA/ μm2, change of anisotropy field ΔHanis=80 Gauss. There are clear oscillations. Amplitude of oscillations increases at a larger Hz. There is a substantial difference between positive and negative scans of Hz. ∂Hanis/∂j~ 0.8 Gauss/(mA/ μm2).E.g. at j=100 mA/ μm2, change of anisotropy field ΔHanis=80 Gauss. There are clear oscillations. Amplitude of oscillations increases at a larger Hz. There is a substantial difference between positive and negative scans of Hz.

details of this measurement method is here

Sample Volt 58A: Ta(5 nm)/ (FeCo 1 nm, x=0.3)/ MgO(7 nm)/ Ta(1 nm)/ Ru(5 nm)

click on image to enlarge it



Spin-orbit torque. Measurement of dependence of anisotropy field Hanis and offset magnetic field Hoff on the electrical current j.

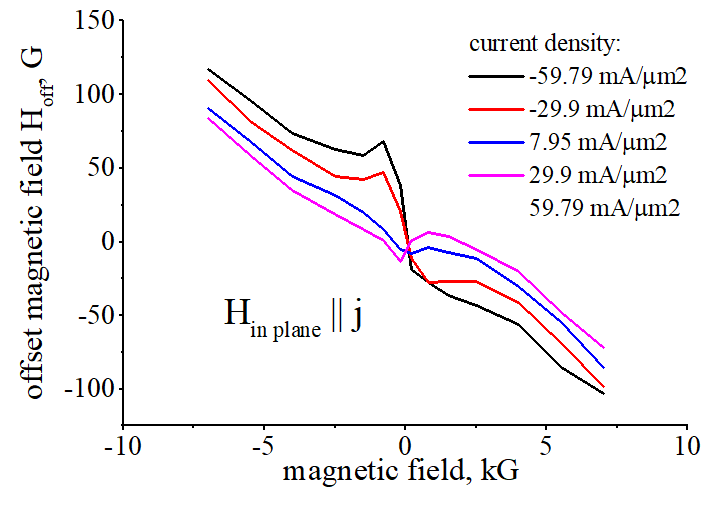

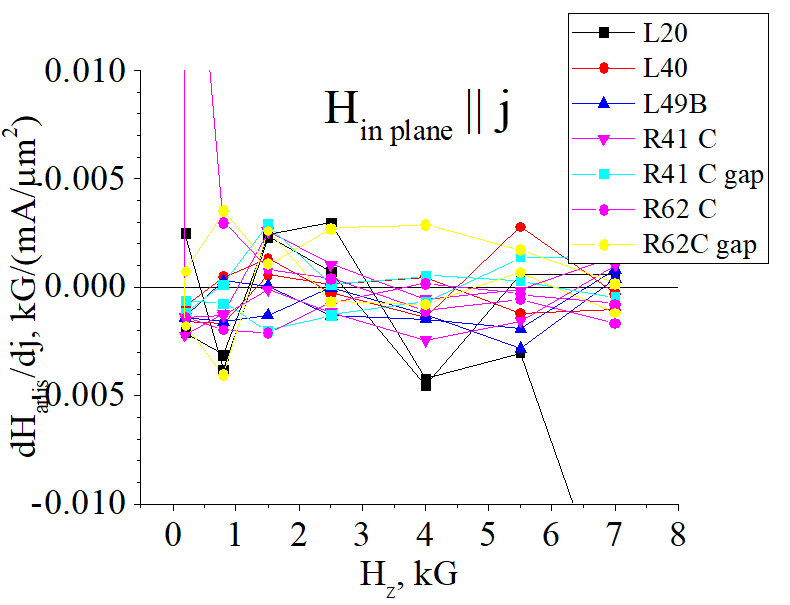

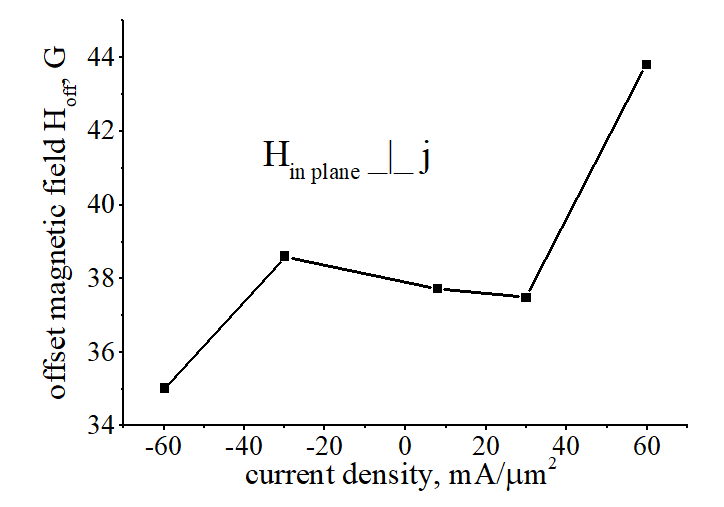

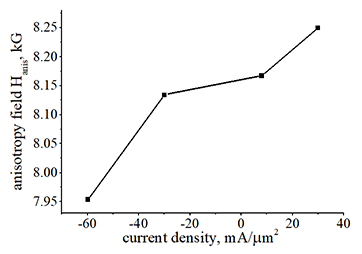

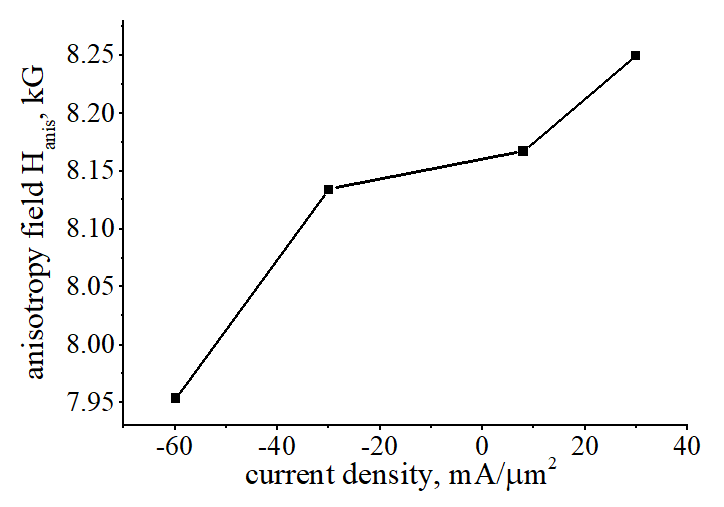

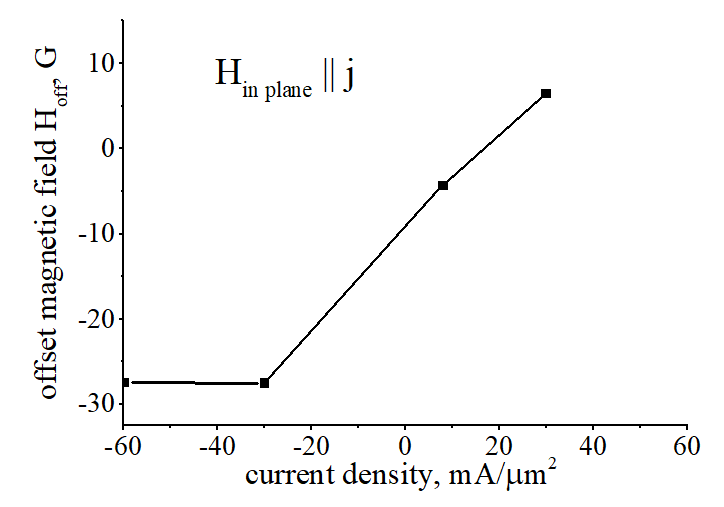

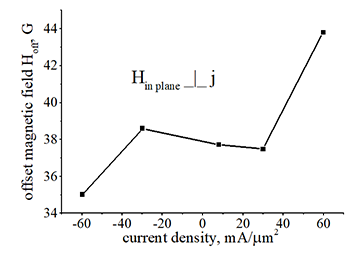

"Field- like torque". Dependence of offset magnetic field Hoff on current j. Scan is along wire. "Damp- like torque". Dependence of offset magnetic field Hoff on current j. Scan is perpendicularly to wire. Dependence of anisotropy field Hanis on current j. Dependence is linear. Slope is positive. Measurement is under perpendicular magnetic field H is + 0.8 kG. Dependence is linear. Slope is positive. Measurement is under perpendicular magnetic field H is + 0.8 kG. Hanis decreases proportionally to j2 due to heating. Also, Hanis is proportional to polarity of current due to SOT effect (dependence is different for +j and -j current). Measurement is under perpendicular magnetic field H is + 0.8 kG. Dependence of offset magnetic field Hoff on perpendicularly applied magnetic field H. Scan is along wire. Dependence of offset magnetic field Hoff on perpendicularly applied magnetic field H. .Scan is perpendicularly to wire. Dependence of anisotropy field Hanis on perpendicularly applied magnetic field H . .

Data of Sample R62C

details of this measurement method is here

click on image to enlarge it







---

VCMA vs PMA



VCMA. Measurement of dependence of PMA on gate voltage

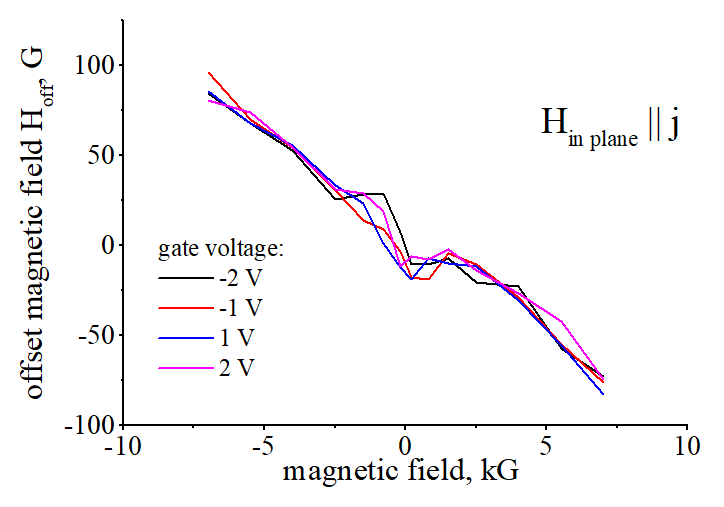

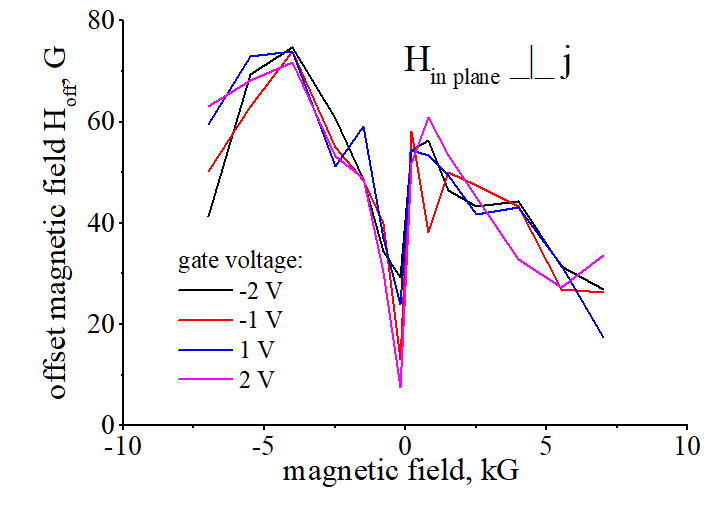

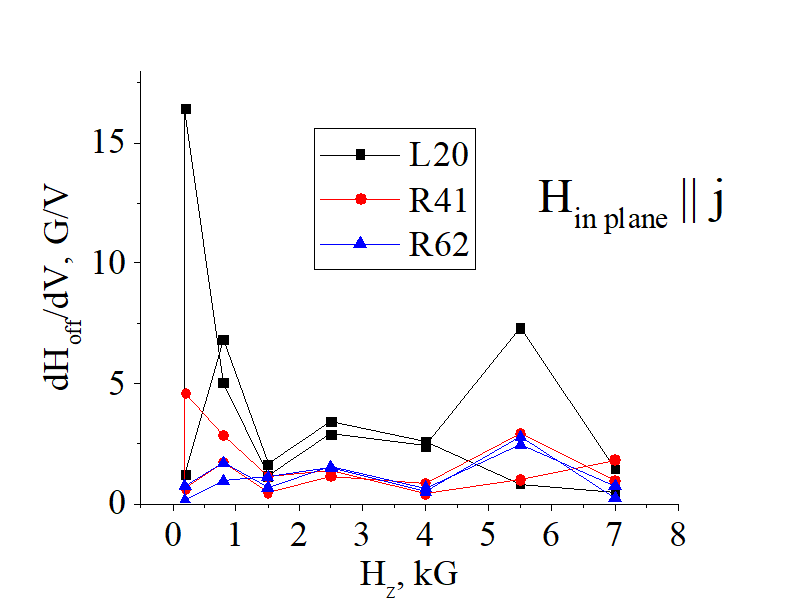

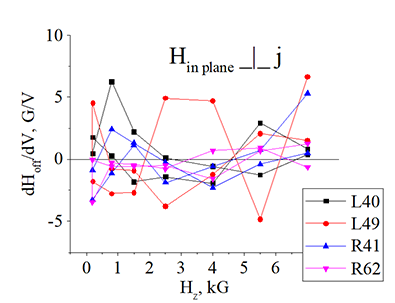

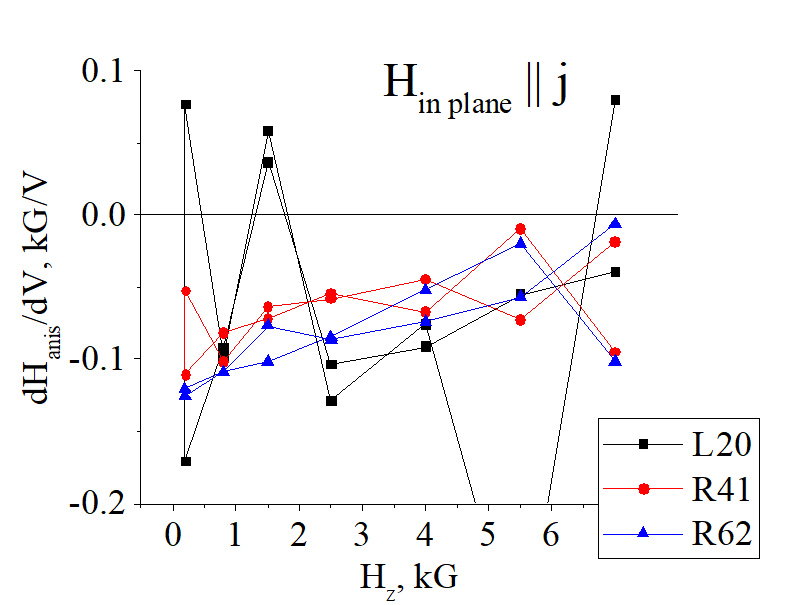

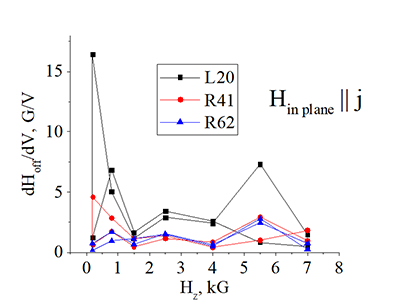

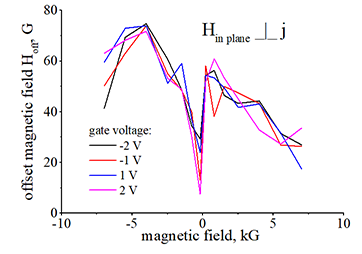

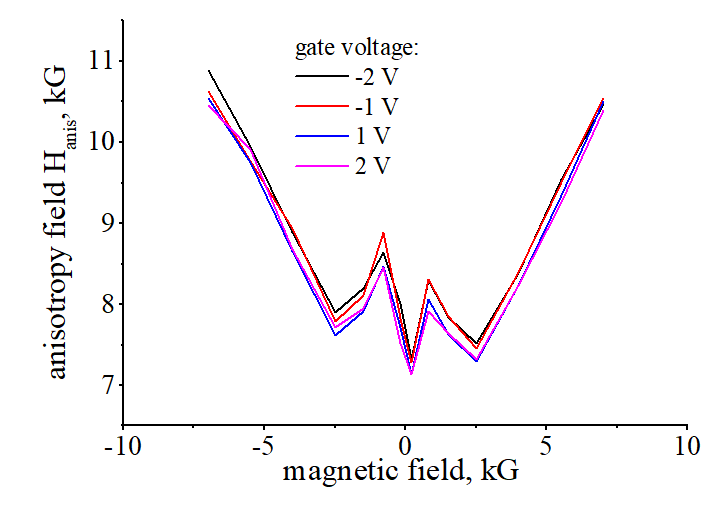

dependence of anisotropy field on gate voltage ∂Hanis/∂V. Scan is along wire. dependence of anisotropy field on gate voltage ∂Hanis/∂V. Scan is perpendicularly to wire.     dependence of offset field on gate voltage ∂Hoff/∂V. Scan is along wire. dependence of offset field on gate voltage ∂Hoff/∂V. Scan is perpendicularly to wire.

details of this measurement method is here

Sample Volt 58A: Ta(5 nm)/ (FeCo 1 nm, x=0.3)/ MgO(7 nm)/ Ta(1 nm)/ Ru(5 nm)

click on image to enlarge it



Voltage-controlled magnetic anisotropy (VCMA). Measurement of dependence of anisotropy field Hanis and offset magnetic field Hoff on gate Voltage

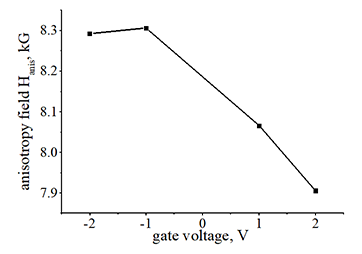

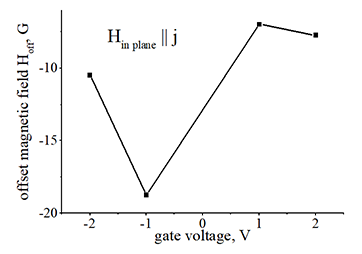

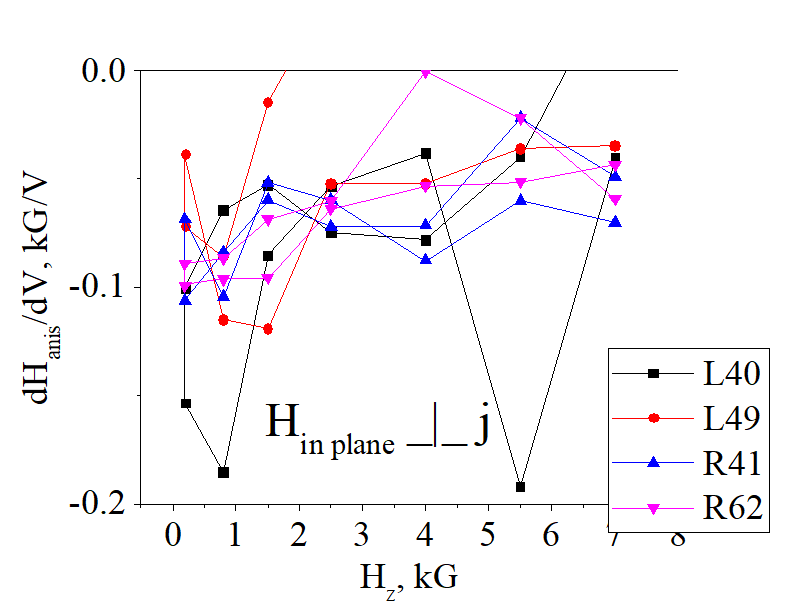

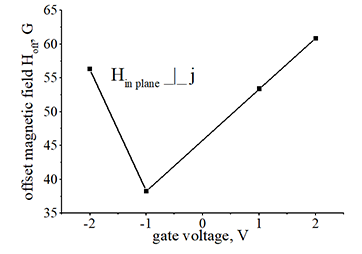

Dependence of anisotropy field Hanis on gate voltage V "Field- like torque". Dependence of offset magnetic field Hoff on gate voltage V. Scan is along wire. "Damp- like torque". Dependence of offset magnetic field Hoff on gate voltage V. Scan is perpendicularly to wire. Hanis is linearly proportional to the gate voltage. Slope is negative. There is a weak saturation at negative voltage. Measurement is under perpendicular magnetic field H is + 0.8 kG. Dependence is weak. Measurement is under perpendicular magnetic field H is + 0.8 kG. Dependence is weak. Slope is positive. There is a saturation at a negative gate voltage. Measurement is under perpendicular magnetic field H is + 0.8 kG. Dependence of anisotropy field Hanis on perpendicularly applied magnetic field H Dependence of offset magnetic field Hoff on perpendicularly applied magnetic field H. Scan is along wire. Dependence of offset magnetic field Hoff on perpendicularly applied magnetic field H. .Scan is perpendicularly to wire. . .

Data of Sample R41C

details of this measurement method is here

click on image to enlarge it









---



(measurement 3) Measurement of magnetization switching under external perpendicular magnetic field Hz

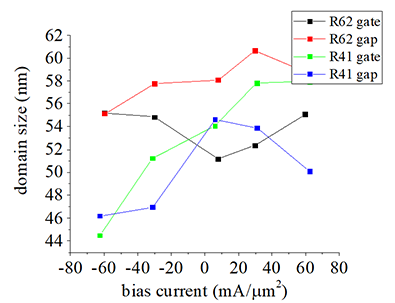

SOT effect. Current dependence of magnetization switching parameters.

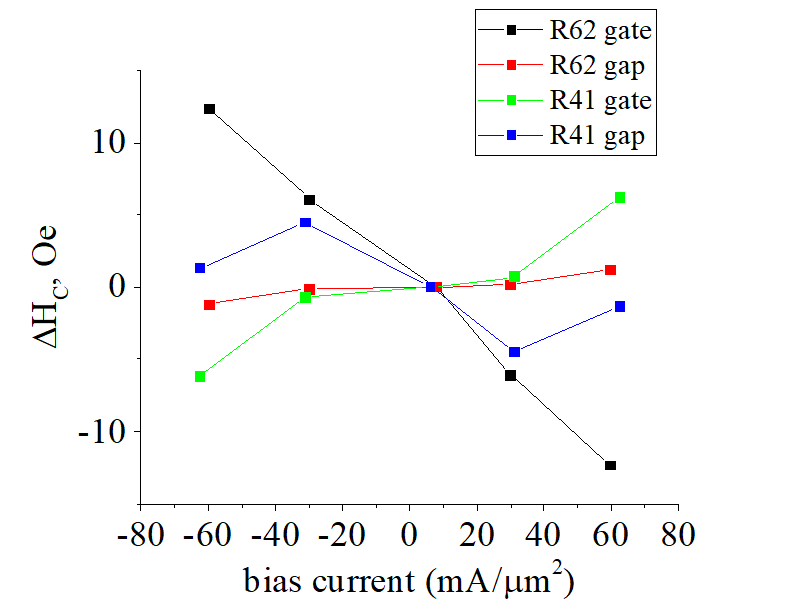

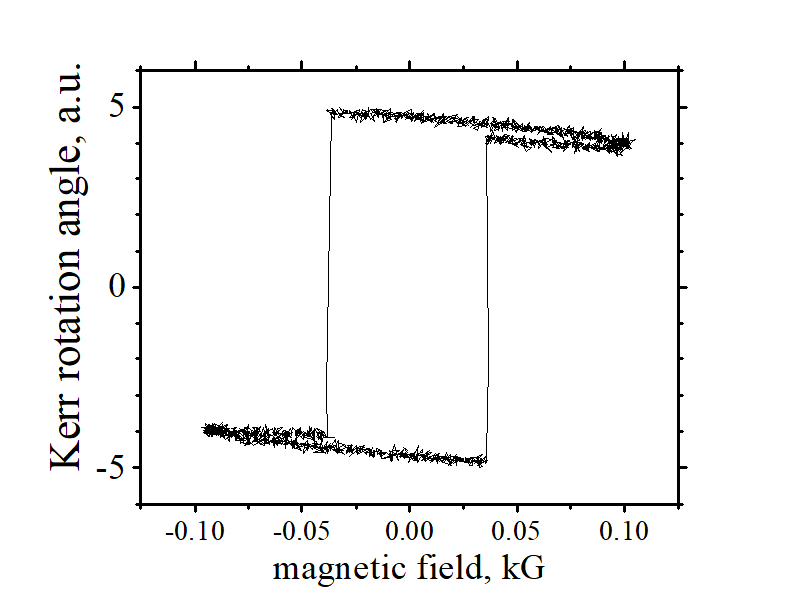

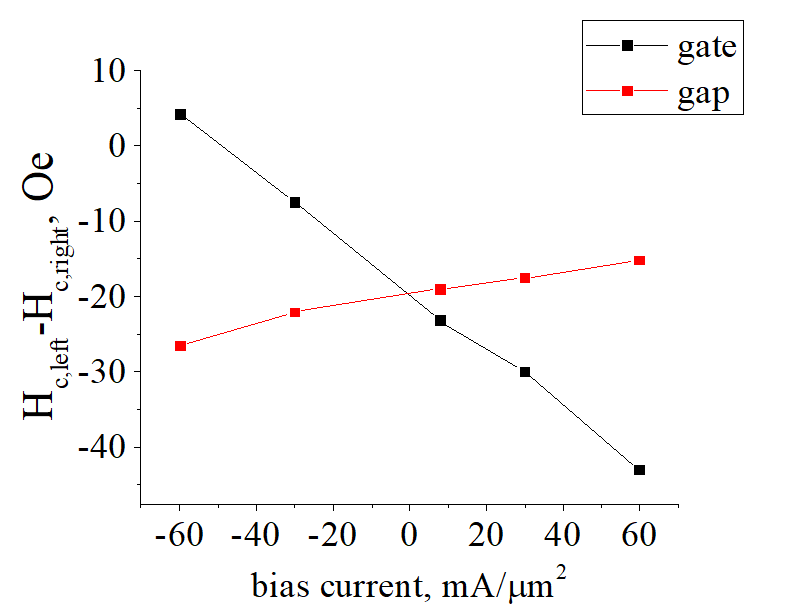

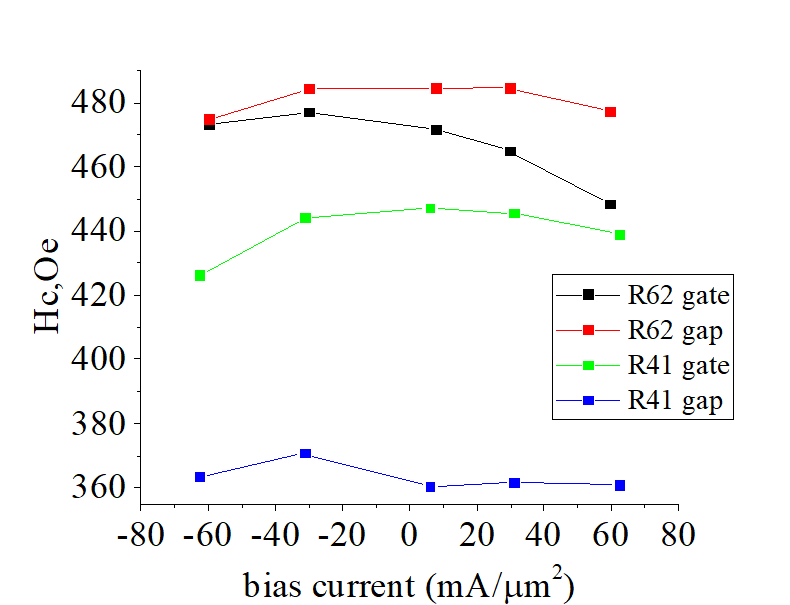

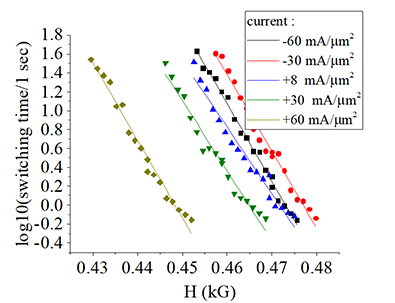

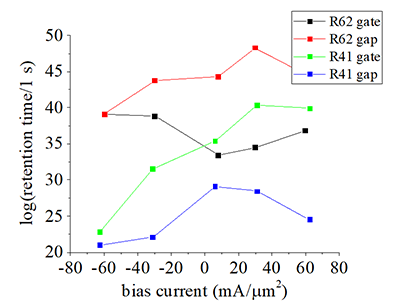

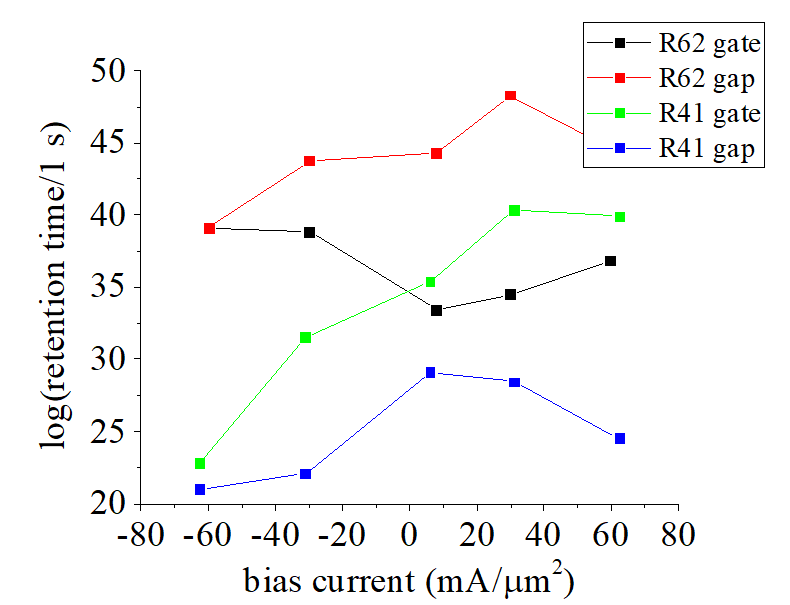

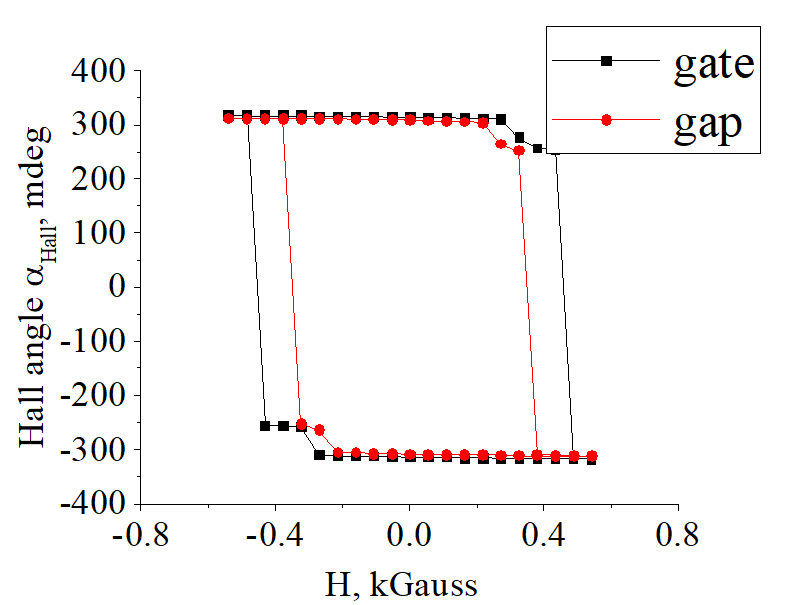

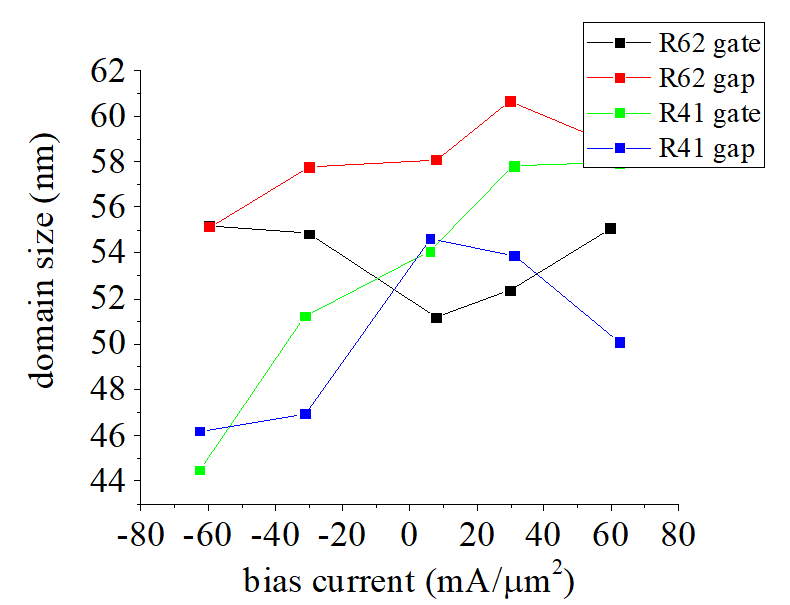

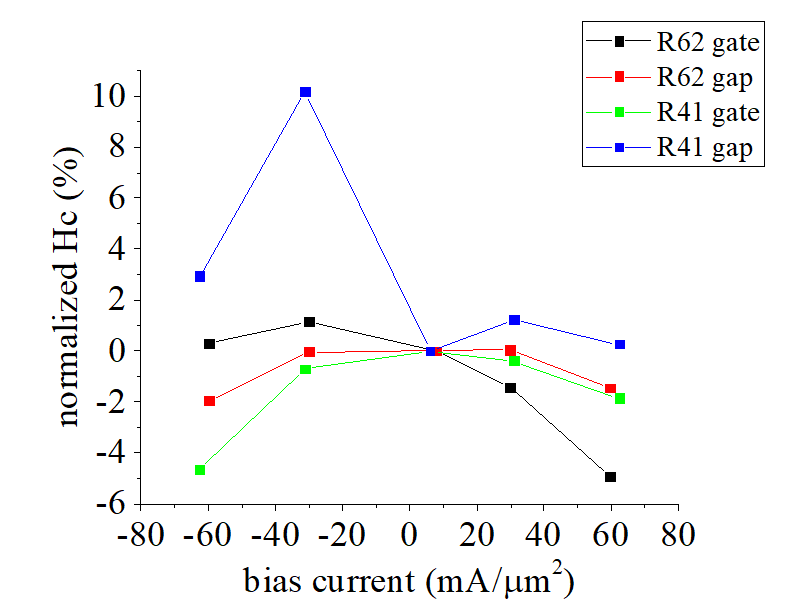

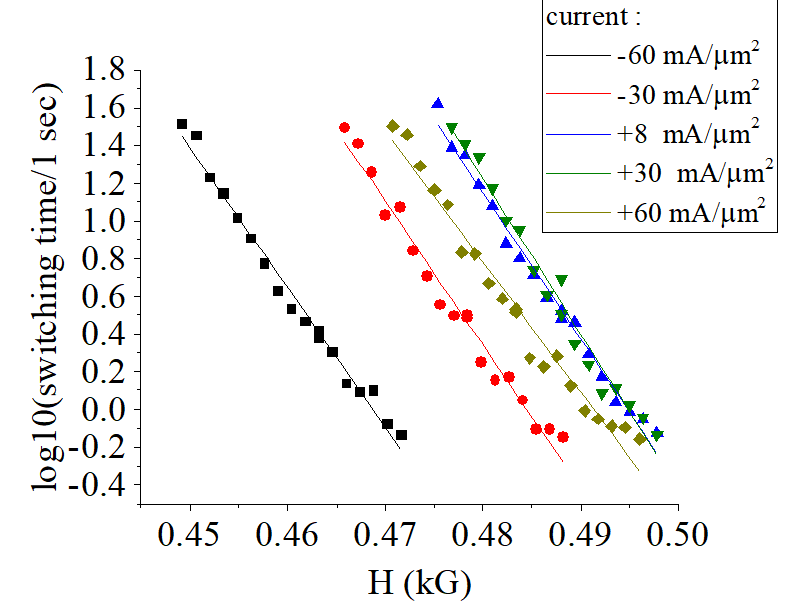

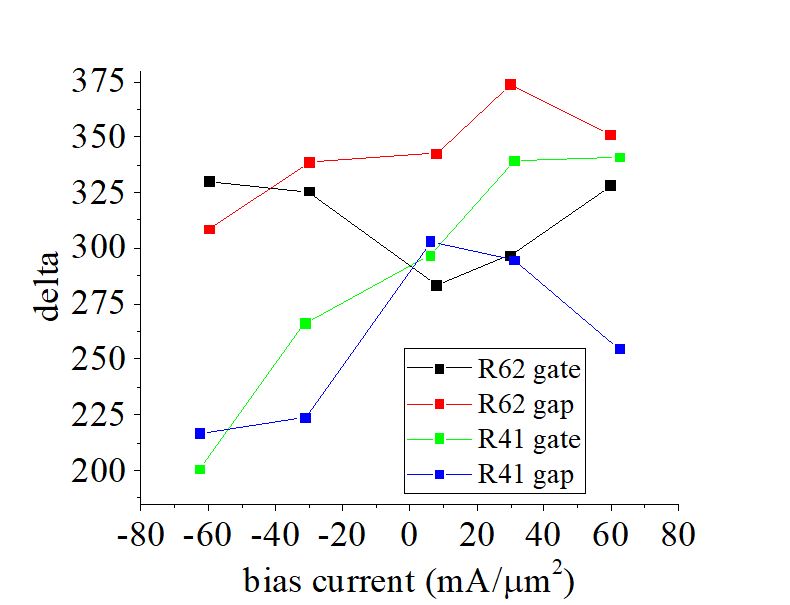

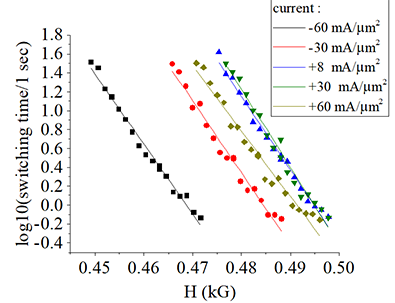

Coercive field HC Normalized change of coercive field HC vs current Dependence of HC on polarity of current j. SOT effect A substantial difference of HC from sample to sample (140-220 Oe). HC is reduced due to heating as HC~ j2. Additionally, coercive field linearly proportional to current HC~j due to SOT effect ΔHC= (HC(j)-HC(-j))/2. The change of HC with reverse of polarity of current. retention time Size of nucleation domain Delta Δ       Raw Data. Switching time vs applied magnetic field H and bias current. Raw Data. Switching time vs applied magnetic field H and bias current Dependence of HC on polarity of current j. SOT effect. Switching from spin-down to spin-up state. The left- side of hysteresis loop. Sample R62 gate Switching from spin-up to spin-down state. The right- side of hysteresis loop. Sample R62 gate ΔHC= (HC(j)-HC(-j))/2. The change of HC with reverse of polarity of current. Data of both gate and gap nanomagnet and from left and right- side switching of the hysteresis loop. Sample R62 gate

details of this measurement method is here

Sample Volt 58A: Ta(5 nm)/ (FeCo 1 nm, x=0.3)/ MgO(7 nm)/ Ta(1 nm)/ Ru(5 nm)

click on image to enlarge it





VCMA vs Coercive field





VCMA. Measurement of dependence of PMA on gate voltage.

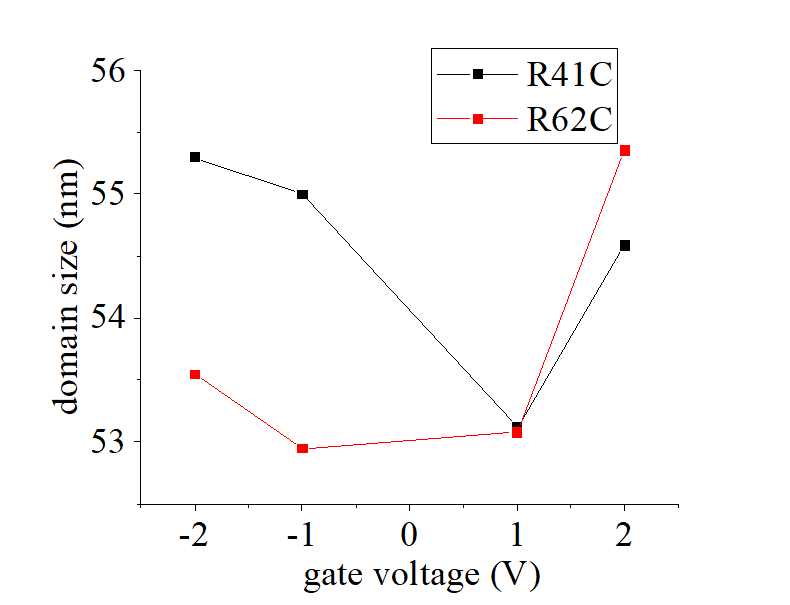

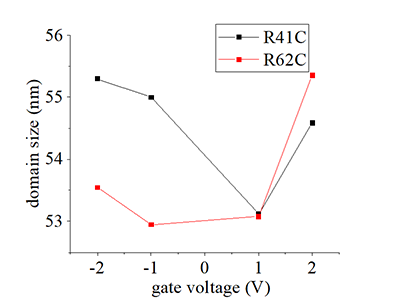

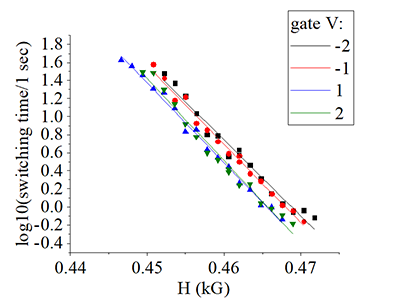

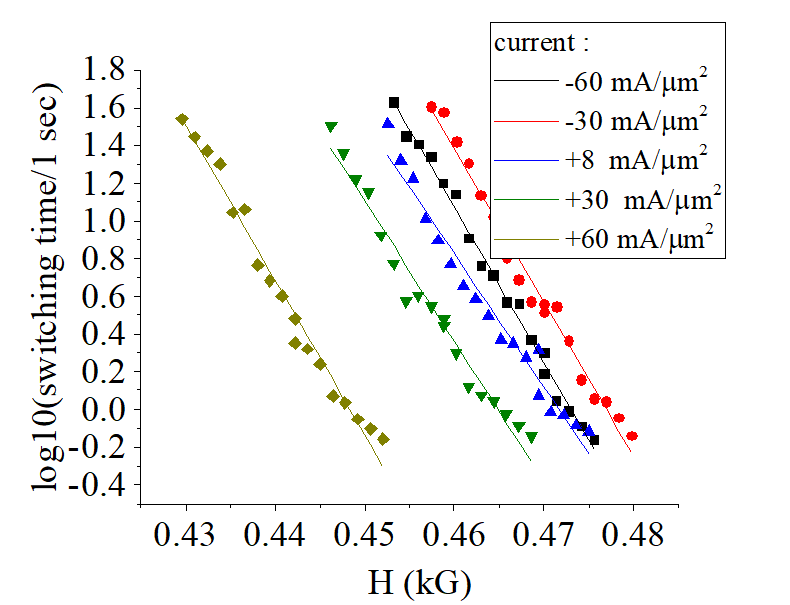

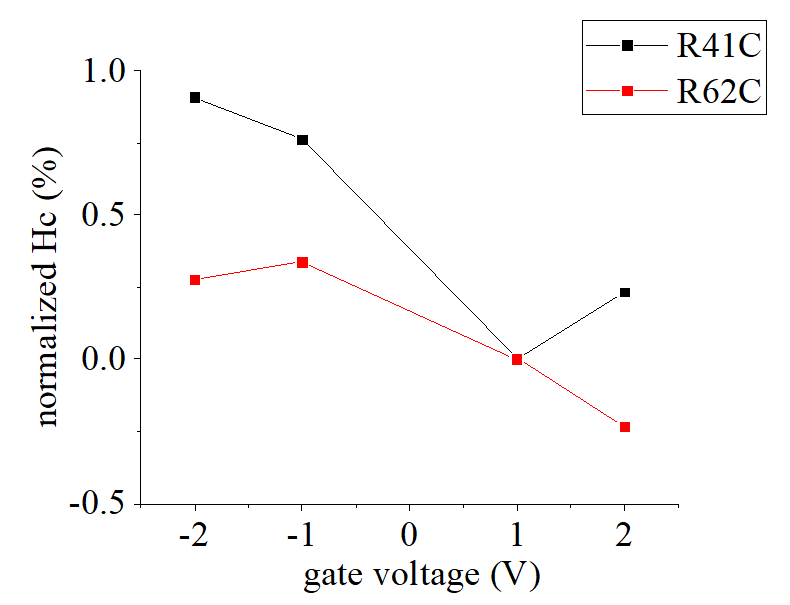

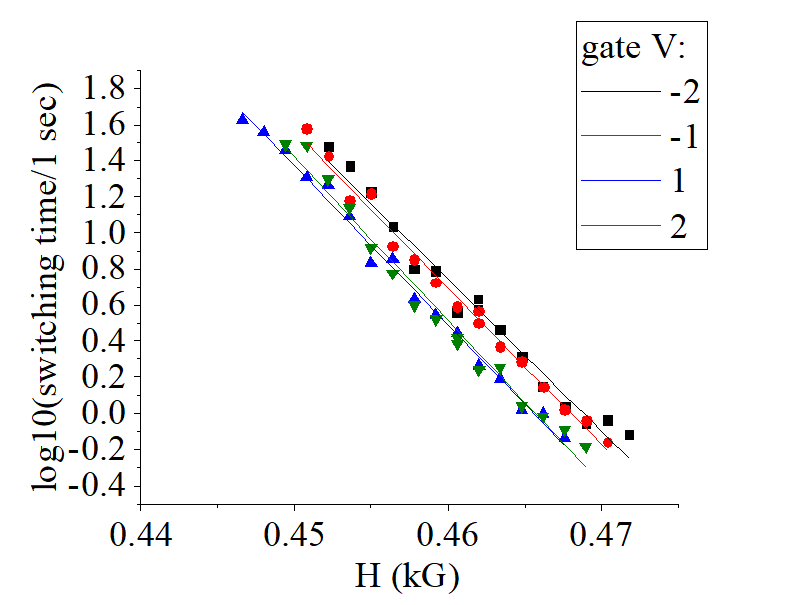

dependence of normalized coercive field on gate voltage dependence of domain size on gate voltage Raw Data. Switching time vs applied magnetic field H at different gate voltage     Sample: R41C right side

details of this measurement method is here

Sample Volt 58A: Ta(5 nm)/ (FeCo 1 nm, x=0.3)/ MgO(7 nm)/ Ta(1 nm)/ Ru(5 nm)

click on image to enlarge it



























































---
